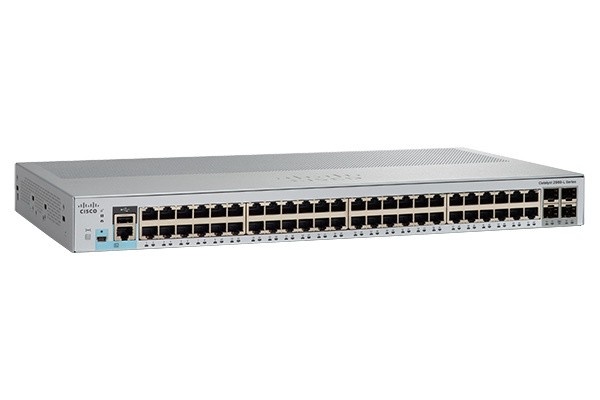

WS-C2960L-48TS-LL Specification
|
|
Configurations
|
|
10/100/1000 Ethernet Ports
|
48
|
|
Uplink Interfaces
|
4 SFP
|
|
Available PoE Power
|
-
|
|
Fanless
|
Y
|
|
Dimensions (H x D x W)
|
1.73 x 9.45 x 17.5 in. (4.4 x 24 x 44.5 cm)
|
|
Net Weight
|
7.21 lb (3.27 kg)
|
|
Console Ports
|
|
RJ45 Ethernet
|
1
|
|
USB mini-B
|
1
|
|
USB-A port for storage and Bluetooth console
|
1
|
|
Memory and Processor
|
|
CPU
|
ARMv7 800 MHz
|
|
DRAM
|
512 MB
|
|
Flash memory
|
256 MB
|
|
Performance
|
|
Forwarding bandwidth
|
52 Gbps
|
|
Switching bandwidth
|
104 Gbps
|
|
Forwarding rate (64-byte L3 packets)
|
77.38 Mpps
|
|
Unicast MAC addresses
|
8K
|
|
Maximum active VLANs
|
64
|
|
VLAN IDs available
|
4094
|
|
Maximum STP instances
|
64
|
|
Maximum SPAN sessions
|
1
|
|
MTU-L3 packet
|
9198 bytes
|
|
Jumbo Ethernet frame
|
10,240 bytes
|
|
MTBF in hours (Data)
|
1,370,769
|
|
MTBF in hours (PoE)
|
437,970
|
|
Environment
|
|
Operating temperature
|
|
Up to 5,000 ft
|
23ºF to 113ºF (–5ºC to 45ºC)
|
|
Up to 10,000 ft
|
23ºF to 104ºF (–5ºC to 40ºC)
|
|
Operating altitude
|
10,000 ft (3000m)
|
|
Operating relative humidity
|
5% to 90% at 40ºC
|
|
Storage temperature
|
–13º to 158ºF (–25º to 70ºC)
|
|
Storage altitude
|
15,000 ft (4500m)
|
|
Storage relative humidity
|
5% to 95% at 65ºC
|
|
Storage altitude
|
Minimum ambient temperature for cold start is 0°C (32°F)
|
|
Electrical
|
Data
|
|
Voltage (autoranging)
|
110 to 220V AC in
|
|
Frequency
|
50 to 60 Hz
|
|
Current
|
0.29A to 0.48A
|
|
Power rating (maximum consumption)
|
0.09 kVA
|
|
Power consumption (watts)
0% traffic
10% traffic
100% traffic
Weighted average
|
29.7
41.1
41.1
37.3
|
|
Safety and Compliance
|
|
Safety
|
UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1
|
|
EMC: emissions
|
47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A
|
|
EMC: immunity
|
EN55024, CISPR24, EN300386, KN24
|
|
Environmental
|
Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
|
|
Telco
|
Common Language Equipment Identifier (CLEI) code
|
|
U.S. government certifications
|
USGv6 and IPv6 Ready Logo
|
|
Connectors and Interfaces
|
|
Ethernet interfaces
|
10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling
|
|
100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling
|
|
1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
|
|
1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
|
|
Indicator LEDs
|
Per-port status: link integrity, disabled, activity, speed, and full duplex
|
|
System status: system, PoE, and link speed
|
|
Console cables
|
CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45
|
|
CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors
|
|
Power
|
Use the supplied AC power cord to connect the AC power connector to an AC power outlet
|
