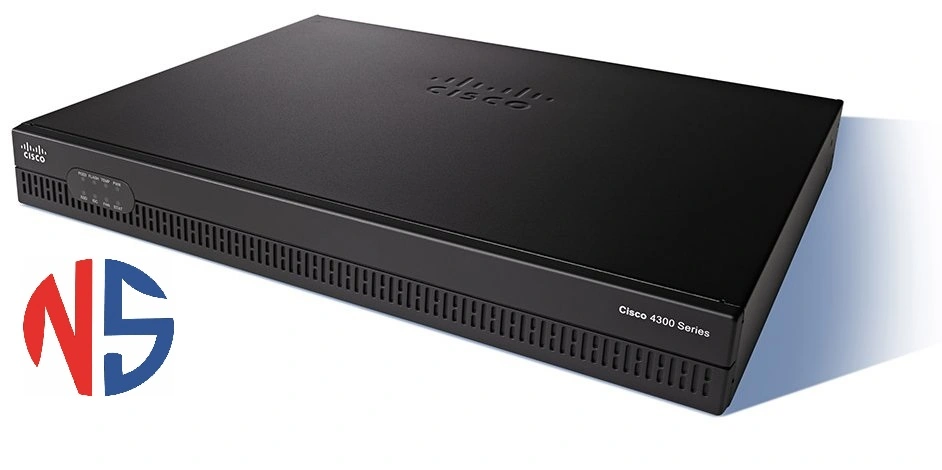

ISR4321-AX/K9 Specification
|
|
Description
|
50Mbps-100Mbps system throughtput, 2 WAN/LAN ports, 1 SFP port, multi-Core CPU,2 NIM, Security, Voice, WAAS, Intelligent WAN, OnePK, AVC
|
|
Aggregate Throughput
|
50 Mbps to 100 Mbps
|
|
Total onboard WAN or LAN 10/100/1000 ports
|
2
|
|
RJ-45-based ports
|
2
|
|
SFP-based ports
|
1
|
|
Enhanced service-module slots
|
0
|
|
Doublewide service-module slots
|
0
|
|
NIM slots
|
2
|
|
OIR (all I/O modules)
|
Yes
|
|
Onboard ISC slot
|
1
|
|
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes)
|
4 GB
|
|
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)
|
8 GB
|
|
Default memory DDR3 ECC DRAM (data plane)
|
NA
|
|
Maximum memory DDR3 ECC DRAM (data plane)
|
NA
|
|
Default memory DDR3 ECC DRAM (control/services plane)
|
NA
|
|
Maximum memory DDR3 ECC DRAM (control/services plane)
|
NA
|
|
Default flash memory
|
4 GB
|
|
Maximum flash memory
|
8 GB
|
|
External USB 2.0 slots (type A)
|
1
|
|
USB console port -type B mini (up to 115.2 kbps)
|
1
|
|
Serial console port - RJ45 (up to 115.2 kbps)
|
1
|
|
Serial auxiliary port - RJ45
(up to 115.2 kbps)
|
1
|
|
Power-supply options
|
External: AC and PoE
|
|
Redundant power supply
|
N/A
|
|
AC input voltage
|
-
|
|
AC input voltage
|
100 to 240 VAC Autoranging
|
|
AC input frequency
|
47 to 63 Hz
|
|
AC input current range, AC power supply (maximum)
|
1.5 to 0.6A
|
|
AC input surge current
|
90 A peak and less than 3 Arms per half cycle
|
|
Typical power (no modules) (watts)
|
36
|
|
Maximum power with AC power supply (watts)
|
125
|
|
Maximum power with PoE power supply (platform only) (watts)
|
260
|
|
Maximum endpoint PoE power available from PoE power supply (watts)
|
120
|
