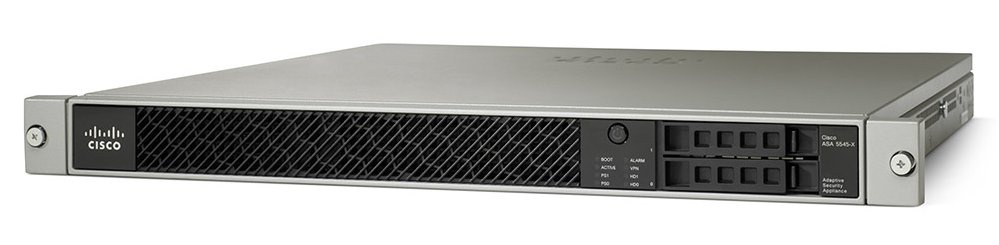

ASA5545-FPWR-K9 Specifications
|
|
Throughput:
Application Control (AVC)
|
1,500 Mbps
|
|
Throughput:
Application Control (AVC) and IPS
|
1,000 Mbps
|
|
Maximum concurrent sessions
|
750,000
|
|
Maximum New Connections per second
|
30,000
|
|
Supported applications
|
More than 3,000
|
|
URL categories
|
80+
|
|
Number of URLs categorized
|
More than 280 million
|
|
Centralized configuration, logging, monitoring, and reporting
|
Multi-device Cisco Security Manager (CSM) and Cisco Firepower Management Center
|
|
On-Device Management
|
ASDM
|
|
Feature
|
Cisco ASA 5545-X w/ FirePOWER Services
|
|
Stateful inspection throughput (maximum1)
|
3 Gbps
|
|
Stateful inspection throughput (multiprotocol2)
|
1.5 Gbps
|
|
Triple Data Encryption Standard/
Advanced Encryption Standard (3DES/AES) VPN throughput3
|
400 Mbps
|
|
Users/nodes
|
Unlimited
|
|
IPsec site-to-site VPN peers
|
2500
|
|
Cisco AnyConnect Plus/Apex VPN maximum simultaneous connections5
|
25005
|
|
Virtual interfaces (VLANs)
|
300
|
|
Security contexts5(included; maximum)
|
2; 50
|
|
High availability4
|
Active/
Active and Active/
Standby
|
|
Integrated Wireless Access Point
(See Cisco AP 702 datasheet for WiFi technical details)
|
N/A
|
|
Expansion slot
|
1 interface card
|
|
User-accessible Flash slot
|
-
|
|
USB 2.0 ports
|
2
|
|
Integrated I/O
|
8 GE copper
|
|
Expansion I/O
|
6 GE copper or 6 GE SFP
|
|
Dedicated management port
|
Yes
(1 GE)
|
|
Serial ports
|
1 RJ-45 console
|
|
Solid-state drive
|
2 slots, RAID 1 or 120 GB MLC SED
|
|
Memory
|
12 GB
|
|
System flash
|
8 GB
|
|
System bus
|
Multibus architecture
|
|
Temperature
|
23 to 104°F (-5 to 40°C)
|
|
Relative humidity
|
90 percent
|
|
Altitude
|
Designed and tested for 0 to 10,000 ft (3050 m)
|
|
Temperature7
|
-13 to 158°F (-25 to 70°C)
|
|
Relative humidity
|
10 to 90 percent
|
|
Altitude
|
Designed and tested for 0 to 15,000 ft (4572 m)
|
|
AC range line voltage
|
100 to 240 VAC
|
|
AC normal line voltage
|
100 to 240 VAC
|
|
AC current
|
5A, 100 to 120V or 2.5A, 200 to 240V
|
|
AC frequency
|
50/60 Hz
|
|
Dual-power supplies
|
Yes
|
|
DC domestic line voltage
|
-40.5 to 56 VDC (-48 VDC nominal)
|
|
DC international line voltage
|
-55 to -72 VDC (-60 VDC nominal)
|
|
DC current
|
15A (maximum input)
|
|
Steady state
|
86W
|
|
Maximum
peak
|
125W
|
|
Maximum
heat dissipation
|
427 Btu/hr
|
|
Form factor
|
1RU, 19-in. rack-mountable
|
|
Weight (with AC power supply)
|
16.82 lb (7.63 kg) with single power supply;
18.86 lb (8.61 kg) with dual power supply
|
